Base Unit Interior Fittings

The packaging of our products is done using high-grade packaging material. Moreover, we are assisted with advanced machines and packaging experts for safe packaging of the products. We have superior storage capacity to safely store the extensive product range that we offer. Our massive and well-maintained storage space is well-connected with the shipping unit.

Specifications

Application	Bottom Grooving Of Nonstick Cookware And Cooker, Wall Chaser, Wall Grooving
Color	Grey, Light White, White, Sliver
Condition	New
Warranty	5yrs
After-sales Service Provided	YES

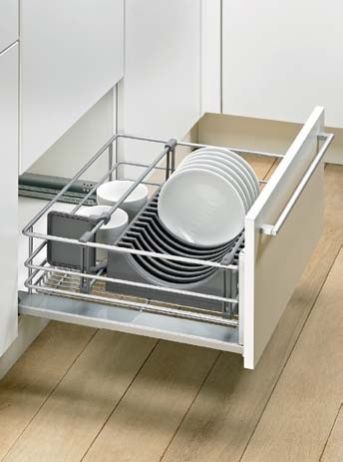

Pot-and-pan Drawers

Details

With 3-dimensional adjustable front panel connection
For carcase sides - 16 - 19 mm thick
Minimum inside carcase depth - 485 mm
For 800 and 900 mm wide cabinets, We recommend use of the Quadro V6+ with Silent System
Powder - Coated steel, silver

Pot-and-Pan Drawer Combination System

Details

3-dimensional adjustment of the front connector
Side elements can be extended to create a pot-and-pan drawer of any width
For variable use with Quadro partial and full extensions, nominal length 500 mm
Conveniently installed slide-on application
Easily dismantled via coupling

Pot-and-pan Drawer with Cut-away Handle

Details

With cut-away handle
Suitable for installation behind hinged doors or pot-and-pan drawers
For carcase sides 16 - 19 mm thick
Minimum inside carcase depth 485 mm
Suitable pot-and-pan drawers, see page 2403
Including 2 spacer profiles each 10 mm wide, white plastic
Powder-coated steel, silver

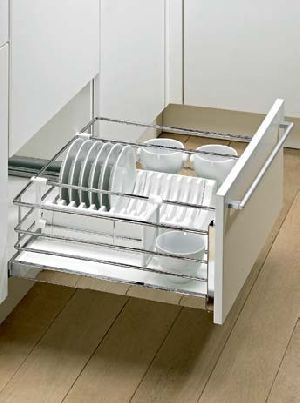

Pot-and-pan Drawer with non-slip coating

Details

With 3-dimensional adjustable front panel connection
For carcase sides 16 - 19 mm thick
Minimum inside carcase depth 495 mm
For 800 and 900 mm wide cabinets, we recommend use of the Quadro V6+ with Silent System
Matching internal pot-and-pan drawers with non-slip coating
Wooden shelf: melamine coated white with non-slip coating
Railing: chrome-plated steel

Pull-out Basket

Set comprises :

1 pull-out basket
1 pair ball-bearing runners with Silent System

Pull-out Frame

Details

Base unit pot-and-pan drawers permit a large variety of possibilities for combination
Optimal use of the available space with compensating and diagonal base units

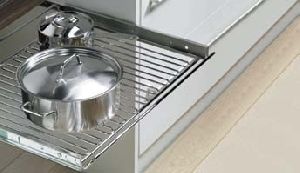

Pull-out Grid

Details

Complete with runners with stainless steel cladding
Safety bar prevents pots and pans falling down
Loading capacity - 15 kg
Minimum inside carcase depth 530 mm
Chrome-plated steel

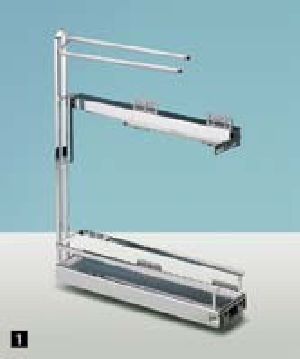

Pull-out Towel Holder

Set comprises : 1 pull-out frame with :

2 towel holders
1 structural metal shelf
2 front connectors
2 full extension runners

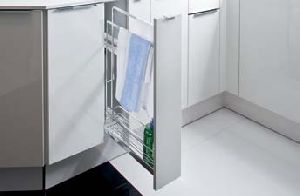

Pull-out Towel Holder 90 Degree

Details

For cabinet width - 150 mm
Full extension with Silent System soft-close feature
Complete with 3-dimensional adjustable front connection
Can only be mounted on the right
Loading capacity - 12 kg
Minimum inside carcase dimensions - Width 112 mm
Depth - 481 mm
Height - 590 mm
Steel

Pull-out Unit

Set comprises : 1 pull-out frame with :

2 structural metal shelves
2 front connectors
2 full extension runners

Revo 90 Degree

Details

The Revo 90° mechanism lets the front panel disappear in the carcase when the unit is opened, thus ensuring unhindered access to the stored contents
The basic fitting is designed to accommodate two shelves
A saucepan shelf is ideal for enlarging the available storage space
The saucepan shelf is without railing for easy removal of the pans

Revo 90 Degree

Details

The Revo 90° mechanism lets the front panel disappear in the carcase when the unit is opened, thus ensuring unhindered access to the stored contents
The basic fitting is designed to accommodate two shelves
A saucepan shelf is ideal for enlarging the available storage space
The saucepan shelf is without railing for easy removal of the pans

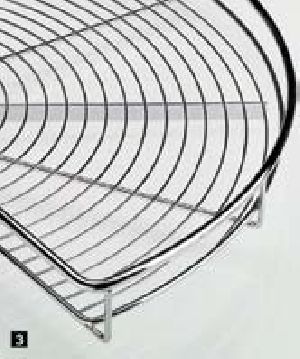

Semi-circular Carousel Shelves

Details

For corner base units, carcase dimensions 800 x 800 or 900 x 900 mm
Variable installation height: the centre column can be adjusted by 839 - 889 mm or shortened to any required length
Quick and simple adjustment of the carousel shelf height thanks to adjustable bearings
Arena STYLE / CLASSIC three-quarter circle revolving shelves: melamine coated white wooden shelves with non-slip special coating
Railing: steel
Set comprises - 2 three-quarter circle revolving shelves, 1 height-adjustable revolving column, 1 set of fittings

Semi-circular Carousel Shelves

Details

For corner base units, carcase dimensions 800 x 800 or 900 x 900 mm
Variable installation height: the centre column can be adjusted by 839 - 889 mm or shortened to any required length
Quick and simple adjustment of the carousel shelf height thanks to adjustable bearings
Arena STYLE / CLASSIC three-quarter circle revolving shelves: melamine coated white wooden shelves with non-slip special coating
Railing: steel
Set comprises - 2 three-quarter circle revolving shelves, 1 height-adjustable revolving column, 1 set of fittings

Semi-circular Carousel Shelves

Details

For corner base units, carcase dimensions 800 x 800 or 900 x 900 mm
Variable installation height: the centre column can be adjusted by 839 - 889 mm or shortened to any required length
Quick and simple adjustment of the carousel shelf height thanks to adjustable bearings
Arena STYLE / CLASSIC three-quarter circle revolving shelves: melamine coated white wooden shelves with non-slip special coating
Railing: steel
Set comprises - 2 three-quarter circle revolving shelves, 1 height-adjustable revolving column, 1 set of fittings

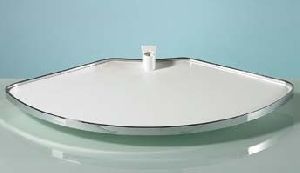

Shelf, Chrome-plated

Details

Additional Arena non-slip shelf for saucepans etc.
Including shelf support, continuously height adjustable
Wooden shelf - Melamine coated white with non-slip special coating

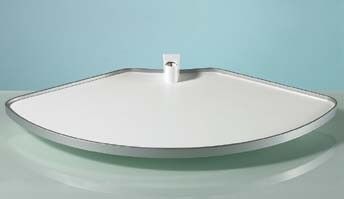

Shelf, Silver

Details

Additional Arena non-slip shelf for saucepans etc.
Including shelf support, continuously height adjustable
Wooden shelf - Melamine coated white with non-slip special coating

Side Elements for Pot-and-pan Drawers

Details

Side elements for shelf length - 488 mm
Chrome - plated steel
Coupling and shelf support: white plastic

` :

Side Elements for Pot-and-pan Drawers

Details

Side elements for shelf length - 488 mm
Chrome - plated steel
Coupling and shelf support: white plastic

Three-quarter Circle Revolving Shelf

Details

Finish - Chrome-plated
Depth 800 x 800 mm
Width - 900 x 900

TopFlex Worktop Extension Fitting

Details

Quickly and conveniently creates additional working space, as required
Compactly hidden out of view behind a drawer front panel
For automatically lowered drawer front
When fully extended, the two worktop halves and the lowered drawer front form a level work surface
Particularly smooth movement
Infinitely variable in width for carcase widths of 450 - 900 mm
Loading capacity 30 kg
Powder-coated steel, silver
Set comprises - Complete fitting

Wire-mesh Shelf

Details

Depth - 490 mm
Height - 33 mm
Loading capacity -15 kg
Wire shelf: chrome-plated steel
Shelf supports - plastic, natural colour
Set comprises : 1 wire-mesh shelf, 4 combination shelf supports for carcase sides 16 or 19 mm thick
